PRODUCTS四面刨系列
欢迎致电产品描述

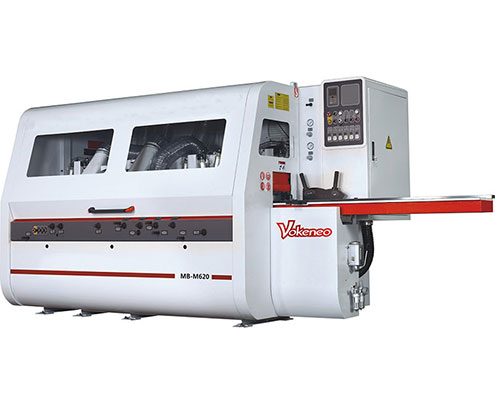

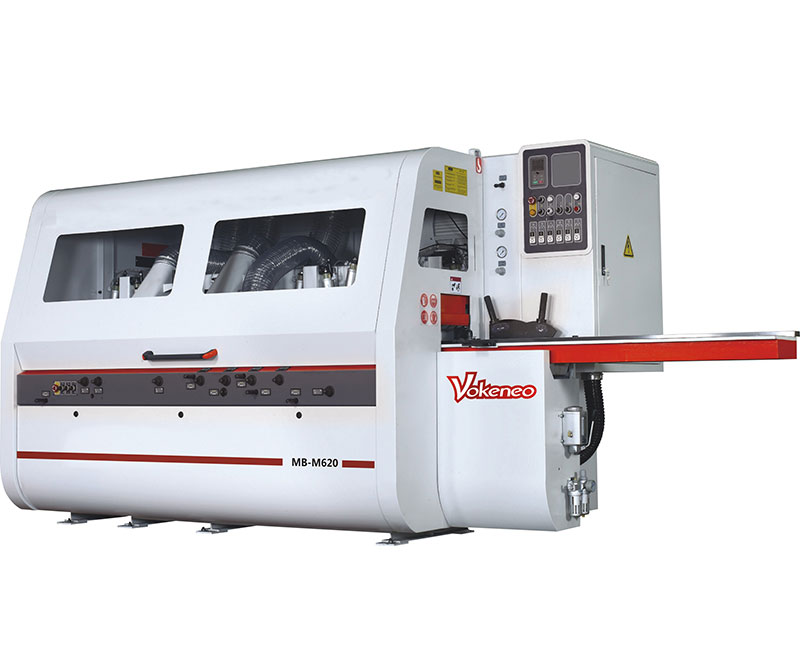

| 规格参数 | Main technical Data | MB-M620 |
| 加工宽度 | Working width | 25-200mm |
| 加工厚度 | Working thickness | 8-130mm |
| 工作台长度 | Working table length | 180mm |
| 送料速度 | Feeding speed | 0-25m/min |
| 主轴直径 | Main shaft diameter | φ40mm |
| 主轴转速 | Main spindle speed | 6000r/min |
| 气源压力 | Pneumatie source pressure | 0.6mpa |
| 总功率 | Overall power | 31.55kw |
| 送料功率 | Feeding power | 4kw |
| 右立轴 | Right shaft | 4kw/φ125-φ165 |
| 左立轴 | left shaft | 4kw/φ125-φ165 |
| 第一下刀轴 | 1st lower shaft | 5.5kw/φ125 |
| 第一上刀轴 | 1st upper shaft | 5.5kw/φ125-φ165 |
| 第二下刀轴 | 2nd lower shaft | 4kw/φ125-φ165 |
| 第二上刀轴 | 2nd upper shaft | 4kw/φ125-φ165 |
| 送料轮直径 | Feeding wheel dia | φ140mm |
| 吸尘管直径 | Dust outle diameter | φ140mm |
| 外形尺寸 | Ovreall size | 3050×1500×1800mm |
